รายละเอียดสินค้า:
|
| warranty: | 1 years | customized support: | OEM, ODM |
|---|---|---|---|
| Surface: | Glossy | Power Source: | Battery |
| Shape: | cylindrical, cylindrical | Engine Type: | Battery |

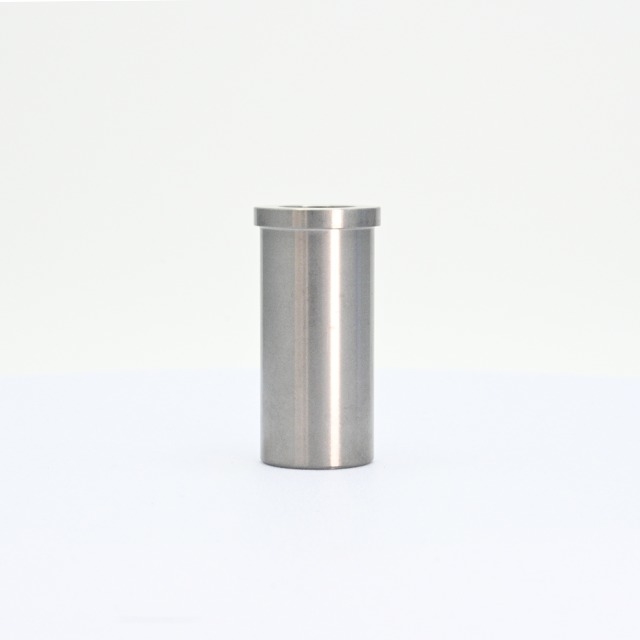

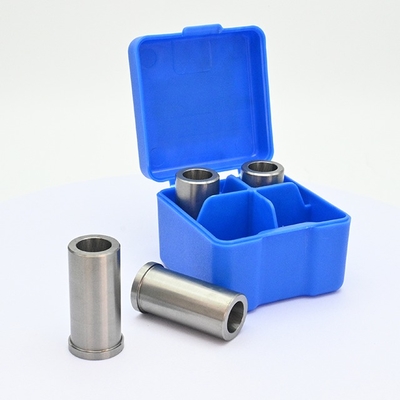

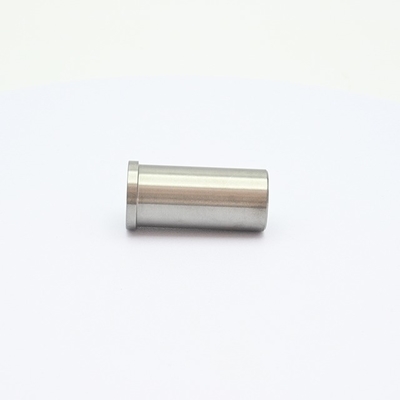

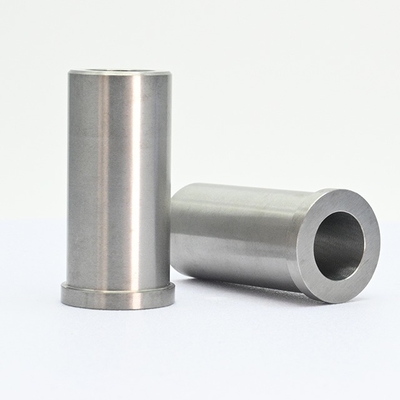

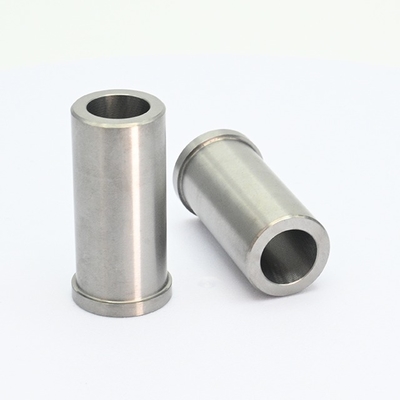

| Product name: | Tungsten Carbide Nozzle sleeve & Bushing | Material: | 100% pure tungsten carbide powder |
| Advantage: | High Wear Resistance | Size: | Customer Required |
| Packing: | Paper Case | Application machine: | PDC Bits |
| Grade: | YG8/YG9C/YG11C | MOQ: | 5 PIECES |
| Color: | black | ||
| เน้น: | แบตเตอรี่พลังงาน shaft คาร์ไบด sleeve,ODM หมุนคาร์ไบด์ชัฟต์,ODM คาร์ไบด์ หมุนแขน |
||
เกรด | องค์ประกอบ (% โดยน้ำหนัก) | คุณสมบัติทางกายภาพ | ขนาดเกรน (μm) | ||||||||||||
ความหนาแน่น g/cm³ (±0.1) | ความแข็ง HRA (±0.5) | TRS Mpa (ขั้นต่ำ) | รูพรุน | ||||||||||||
WC | Ni | Ti | TaC | A/B/C | |||||||||||
KD115/YG6X | 93.5 | 6.0 | - | 0.5 | 14.90 | 93.0 | 2700 | A02/B00/C00 | 0.6-0.8 | ||||||
KD335/YG10X | 89.0 | 10.5 | - | 0.5 | 14.40 | 91.8 | 3800 | A02/B00/C00 | 0.6-0.8 | ||||||
KG6/YG6 | 94.0 | 6.0 | - | - | 14.90 | 90.5 | 2500 | A02/B00/C00 | 1.2-1.6 | ||||||
KG8/YG8 | 92.0 | 8.0 | - | - | 14.75 | 90.0 | 3200 | A02/B00/C00 | 1.2-1.6 | ||||||
KG9/YG9 | 91.0 | 9.0 | - | - | 14.60 | 89.0 | 3200 | A02/B00/C00 | 1.2-1.6 | ||||||
KG9C/YG9C | 91.0 | 9.0 | - | - | 14.60 | 88.0 | 3200 | A02/B00/C00 | 1.6-2.4 | ||||||
KG10/KG10 | 90.0 | 10.0 | - | - | 14.50 | 88.5 | 3200 | A02/B00/C00 | 1.2-1.6 | ||||||
KG11/YG11 | 89.0 | 11.0 | - | - | 14.35 | 89.0 | 3200 | A02/B00/C00 | 1.2-1.6 | ||||||
KG11C/YG11C | 89.0 | 11.0 | - | - | 14.40 | 87.5 | 3000 | A02/B00/C00 | 1.6-2.4 | ||||||
KG13/YG13 | 87.0 | 13.0 | - | - | 14.20 | 88.7 | 3500 | A02/B00/C00 | 1.2-1.6 | ||||||
KG13C/YG13C | 87.0 | 13.0 | - | - | 14.10 | 87.0 | 3500 | A02/B00/C00 | 1.6-2.4 | ||||||
KG15/YG15 | 85.0 | 15.0 | - | - | 14.00 | 87.5 | 3500 | A02/B00/C00 | 1.2-1.6 | ||||||
KG15C/YG15C | 85.0 | 15.0 | - | - | 14.50 | 86.5 | 3500 | A02/B00/C00 | 1.6-2.4 | ||||||
KD118/YG8X | 91.5 | 8.5 | - | - | 14.10 | 93.6 | 3800 | A02/B00/C00 | 0.4-0.6 | ||||||
KD338/YG12X | 88.0 | 12.0 | - | - | 12.60 | 92.8 | 2200 | A02/B00/C00 | 0.4-0.6 | ||||||
KD25/P25 | 77.4 | 8.5 | 6.5 | 6.0 | 12.70 | 91.8 | 2200 | A02/B00/C00 | 1.0-1.6 | ||||||
KD35/P35 | 69.2 | 10.5 | 5.2 | 13.8 | 13.25 | 91.1 | 2500 | A02/B00/C00 | 1.0-1.6 | ||||||
KD10/M10 | 83.4 | 7.0 | 4.5 | 4.0 | 12.33 | 93.0 | 2000 | A02/B00/C00 | 0.8-1.2 | ||||||
KD20/M20 | 79.0 | 8.0 | 7.4 | 3.8 | 12.33 | 92.1 | 2200 | A02/B00/C00 | 0.8-1.2 | ||||||
ข้อมูลจำเพาะ | OD(D:mm) | ID(D1:mm) | รูพรุน(d:mm) | ความยาว(L;mm) | ความยาวขั้นบันได(L1:mm) |
01 | 16.41 | 14.05 | 12.70 | 25.40 | 1.00 |
02 | 16.41 | 14.05 | 12.70 | 31.75 | 1.00 |
03 | 22.04 | 18.86 | 15.75 | 31.75 | 3.18 |
04 | 22.04 | 18.86 | 15.75 | 50.80 | 3.18 |
05 | 16.00 | 13.90 | 10.31 | 76.20 | 3.18 |
06 | 22.00 | 18.88 | 14.30 | 25.40 | 3.18 |
07 | 24.00 | 21.00 | 16.00 | 75.00 | 3.00 |
08 | 22.90 | 21.00 | 15.00 | 75.00 | 3.00 |
09 | 19.50 | 16.90 | 12.70 | 50.00 | 4.00 |
10 | 36.80 | 32.80 | 26.00 | 55.00 | 4.00 |
